When setting up a reliable solar power system, choosing the right inline fuse holder solar is essential for safety and performance. The best overall pick, the Renogy 30A Waterproof In-Line Fuse, offers robust waterproofing and high current capacity, making it ideal for most residential setups. For those prioritizing affordability, the Vansdon 15A Fuse Holders provide solid performance at a lower cost, though they may lack some advanced waterproof features. The tradeoffs in this category often involve balancing waterproof ratings, current capacity, and ease of installation. Keep reading for a detailed look at the top options and what to consider when choosing your fuse holder.
Key Takeaways
- High waterproof ratings (IP67/IP68) are crucial for outdoor solar installations to prevent corrosion and failure.
- Current capacity should match or exceed your system’s maximum output to avoid overloads.
- Pre-wired options with connectors simplify installation and reduce wiring errors.
- Higher-priced models often include better weatherproofing and build quality, but budget options can suffice for less exposed setups.
- Compatibility with fuse sizes and quick replacement features can save time during maintenance.
| CNLonQ 15A Solar Fuse Holder Inline IP67 Waterproof with 10x38mm Fuse for Solar Panel and Controller (2 pcs) |  | Best Overall for Outdoor Durability and Ease of Use | Current Rating: 15A | Fuse Size: 10x38mm | Waterproof Rating: IP67 | VIEW ON AMAZON | See Our Full Breakdown |
| 20 Amp Solar PV Fuse, Pack of 5, DC 1000V Inline Solar Fuse Holder with Waterproof IP67 Rating |  | Best Value for Multiple 20A Protection Needs | Rated Current: 20A | Rated Voltage: DC 1000V | Connector System: ф4mm | VIEW ON AMAZON | See Our Full Breakdown |
| Renogy 30A Waterproof In-Line Fuse Solar Panel Holder with Fuse |  | Best for High-Current Outdoor Solar Applications | Rated Current: 30A | Rated Voltage: 1000V DC | Test Voltage: 6000V | VIEW ON AMAZON | See Our Full Breakdown |
| BougeRV 5PCS 30A Solar Fuse Holders Inline for Solar Panel and Controller |  | Best for Budget-Conscious Multiple Circuit Protection | Current Rating: 30A | Protection Degree: IP67 | Operating Temperature: -40°C ~ +90°C | VIEW ON AMAZON | See Our Full Breakdown |
| Renogy 15A Waterproof In-Line Fuse Holder with Fuse, Black |  | Best for Compact, Reliable 15A Circuit Protection | Rated Current: 15A | Rated Voltage: 1000V DC | Protection Class: IP67 | VIEW ON AMAZON | See Our Full Breakdown |
| Vansdon 2PCS 15A Solar Fuse Holder Inline for Solar Panel and Controller |  | Best Overall for Outdoor Durability and Safety | Part Number: SOLAR FUSE-05 | Item Weight: 2.39 ounces | Product Dimensions: 5.1 x 1 x 2.2 inches | VIEW ON AMAZON | See Our Full Breakdown |
| 5 Pcs 10A Solar Fuse Holder Inline with Male and Female Connectors, IP68 Waterproof |  | Best for Cost-Effective Bulk Protection in Outdoor Environments | Number of pieces: 5 | Fuse rating: 10A | Waterproof rating: IP68 | VIEW ON AMAZON | See Our Full Breakdown |
| Solar Fuse Holder, 1000V DC PV Inline Fuse Connector, 2-Pack 15A |  | Best for High-Voltage Outdoor Solar Systems | Voltage: 1000V DC | Current: 15A | Waterproof Rating: IP67 | VIEW ON AMAZON | See Our Full Breakdown |
| PV In-Line Fuse – 1000V Solar Fuse Holder, Weatherproof and Fire-Safe, Quick Installation (20A, 1 Pack) |  | Best for Easy, Reliable Outdoor Installation | Voltage: 1000V | Current: 20A | Waterproof: Yes | VIEW ON AMAZON | See Our Full Breakdown |
| 25A 1000V Solar Fuse Holder Inline with 5PCS Male and Female Connectors |  | Best for High-Current, Extreme Environment Solar Systems | Current Rating: 25A | Voltage Rating: 1000V | Connectors: 5PCS male and female | VIEW ON AMAZON | See Our Full Breakdown |
| 30A Solar PV Inline Fuse Holder Waterproof Connector, 5 Pcs |  | Best for Outdoor Durability and Reliable Connection | Number of Pieces: 5 | Current Rating: 30A | Voltage: 1000V | VIEW ON AMAZON | See Our Full Breakdown |
| Vansdon 5PCS 15A Solar Fuse Holder Inline for Solar Panel and Controller |  | Best for Safe, Standard-Current Outdoor Solar Applications | Part Number: SOLAR FUSE-06 | Item Weight: 6.7 ounces | Product Dimensions: 5.1 x 1 x 2.2 inches | VIEW ON AMAZON | See Our Full Breakdown |
| CNLonQ 30A Solar Fuse Holder Inline IP67 Waterproof with 10x38mm Fuse (2 pcs) |  | Best for Outdoor Durability with Standard Fuse Size | Material: PPO flame retardant housing | Waterproof Rating: IP67 | Fuse Size: 10x38mm | VIEW ON AMAZON | See Our Full Breakdown |
| Solar Panel Fuse Holder 1000V with PV Fuse Inline Connector 10A/15A/20A/30A Kit, Waterproof IP67, Includes Wrench |  | Best for Complete Installation and Maintenance Kits | Voltage: 1000V | Fuse Ratings: 10A, 15A, 20A, 30A | Material: PC/PPO | VIEW ON AMAZON | See Our Full Breakdown |
| 20A Solar Fuse Holder Inline, 2PCS DC 1000V Solar PV Fuse for Solar Panel and Controller |  | Best for Compact, Reliable 20A Protection | Rated current: 20A | Rated voltage: DC 1000V | Connector system: ф4mm | VIEW ON AMAZON | See Our Full Breakdown |
More Details on Our Top Picks
CNLonQ 15A Solar Fuse Holder Inline IP67 Waterproof with 10x38mm Fuse for Solar Panel and Controller (2 pcs)

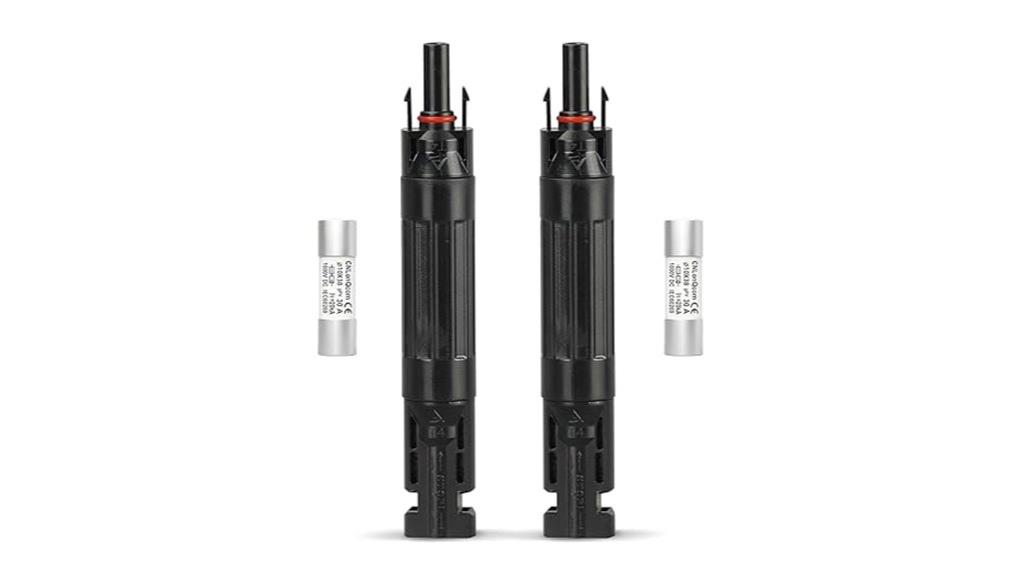

This fuse holder stands out for its robust IP67 waterproof rating and high-quality materials like PPO flame-retardant housing and tinned copper terminals, making it ideal for outdoor solar setups. Compared with the Renogy 15A holder, it offers similar waterproof protection but supports a slightly lower current rating with 15A maximum, which limits its use in higher-power systems. Its quick fuse replacement feature enhances safety and convenience, yet it requires careful installation to ensure optimal safety. For those seeking a durable, weatherproof inline fuse solution, this model offers reliable protection with straightforward handling, though its lower current capacity means it isn’t suitable for larger, high-demand systems.
Pros:- High waterproof and durability with IP67 rating
- Easy fuse replacement for quick maintenance
- Reliable circuit protection suitable for outdoor use
Cons:- Limited to 15A current, restricting use in higher-power systems
- Requires careful installation to maximize safety
Best for: Homeowners or small-scale solar enthusiasts needing reliable outdoor protection within 15A load limits
Not ideal for: Large commercial solar installations or systems exceeding 15A, due to current limitations and the need for more heavy-duty protection
- Current Rating:15A
- Fuse Size:10x38mm
- Waterproof Rating:IP67
- Material:PPO flame retardant housing, tinned copper terminals
- Voltage:DC 1000V
- Quantity:2 pcs
Our verdict“This fuse holder is ideal for outdoor residential solar setups where durability and ease of fuse replacement are priorities, within its current rating limit.”
20 Amp Solar PV Fuse, Pack of 5, DC 1000V Inline Solar Fuse Holder with Waterproof IP67 Rating

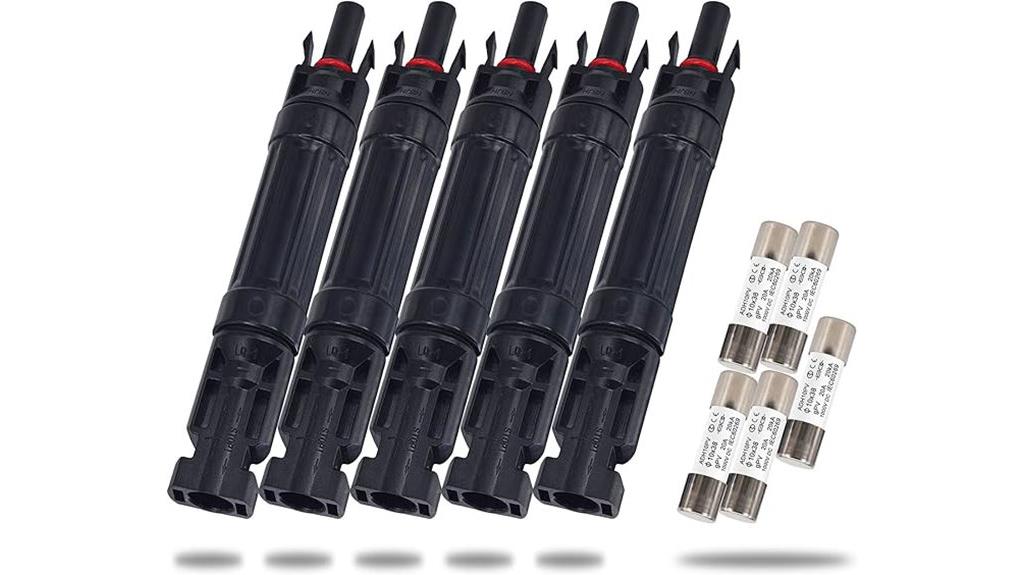

This set of five 20A fuse holders provides a cost-effective solution for protecting multiple solar circuits. Their IP67 waterproof and dustproof ratings ensure durability in harsh environments, making them suitable for larger residential or small commercial systems. Compared with the BougeRV 5-pack, these fuses are straightforward to install with standard terminal connectors, but their 20A rating limits their use in higher-capacity systems. The inclusion of five units offers flexibility for multiple panels or branches, yet handling must be cautious to prevent damage during installation. For buyers managing multiple solar components on a budget, this set offers reliable, weatherproof overcurrent protection, though it isn’t suited for systems exceeding 20A.
Pros:- Waterproof and dustproof IP67 rating ensures outdoor durability
- Pack of five offers good value and flexibility
- Easy to install with standard terminal connections
Cons:- Limited to 20A current, not suitable for larger systems
- Requires careful handling to prevent damage during installation
Best for: Owners of multiple solar panels or systems requiring several protected circuits under 20A
Not ideal for: High-power or commercial systems exceeding 20A load, where higher-rated or specialized fuse holders are needed
- Rated Current:20A
- Rated Voltage:DC 1000V
- Connector System:ф4mm
- Temperature Range:-40°C to +205°C
- Number of Items:5
Our verdict“This pack of 20A fuse holders delivers affordable, weatherproof protection for multiple small to medium solar circuits, but isn’t rated for higher loads.”
Renogy 30A Waterproof In-Line Fuse Solar Panel Holder with Fuse
The Renogy 30A fuse holder is designed for higher-capacity outdoor solar systems, supporting up to 30A with a robust IP67 waterproof rating. It surpasses the 15A and 20A options by accommodating larger systems with more current draw, making it suitable for mid-sized installations. Compared with the BougeRV 5-pack, it offers a more durable, single-unit solution with high voltage capacity and a secure locking mechanism, but it comes at a higher cost per piece. Its fuse is included, providing surge protection out of the box, though careful handling is needed when unplugging under load to prevent damage. This model suits those with systems approaching but not exceeding 30A, who need reliable outdoor protection without multiple components.
Pros:- Supports high current (30A) for larger systems
- IP67 waterproof protection suits outdoor environments
- Includes fuse for immediate surge protection
Cons:- Limited to 30A applications, not suitable for larger systems
- Requires careful handling during unplugging to avoid damage
Best for: Solar system owners needing high-current, outdoor-rated fuse protection for up to 30A
Not ideal for: Small residential setups or systems below 15A, where a simpler or lower-rated fuse holder suffices
- Rated Current:30A
- Rated Voltage:1000V DC
- Test Voltage:6000V
- Contact Resistance:1mΩ
- Protection Class:IP67
- Weight:18.14 g
Our verdict“This fuse holder is best suited for outdoor systems approaching 30A, providing high current capacity with reliable weatherproofing.”
BougeRV 5PCS 30A Solar Fuse Holders Inline for Solar Panel and Controller

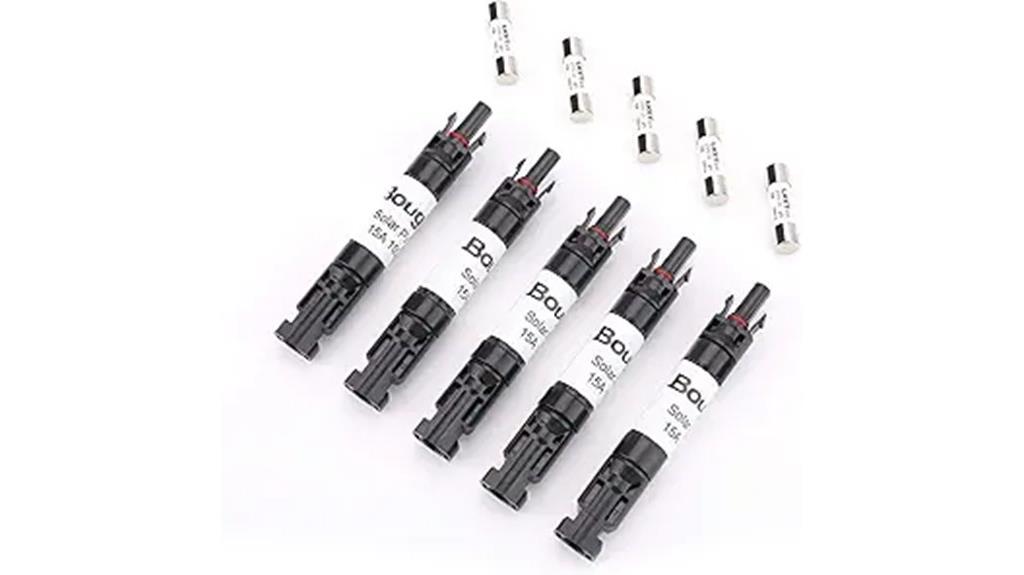

This set of five fuse holders supports 30A currents and features waterproof IP67 ratings, making it a practical choice for outdoor solar systems with multiple circuits. Their UV resistance and easy plug-and-play design deliver convenience, especially for larger setups needing several protected branches. Compared with the Renogy 30A holder, these are more affordable but lack the same high-end locking features, and their temperature derating above 60°C can limit performance in hot climates. The multiple units provide flexibility, but system designers must stay within each fuse’s 30A limit. For those managing multiple solar lines on a budget, these offer reliable, weatherproof protection, although their lower-end features may not suit high-demand or precision applications.
Pros:- Offers reliable, waterproof protection for multiple circuits
- UV resistant and easy to install
- Cost-effective for multiple circuit protection
Cons:- Limited to 30A, not suitable for higher loads
- Temperature derating above 60°C can affect performance
Best for: DIY solar operators requiring multiple 30A fuse protections at an affordable price
Not ideal for: Systems exceeding 30A per circuit or environments with extreme temperature fluctuations over 60°C, where higher-grade holders are preferred
- Current Rating:30A
- Protection Degree:IP67
- Operating Temperature:-40°C ~ +90°C
- Material:PPO with ceramic fuse tube
- Certifications:TÜV, CE
Our verdict“This pack provides affordable, weatherproof 30A protection for multiple solar circuits, ideal for budget-conscious DIY projects with moderate current needs.”
Renogy 15A Waterproof In-Line Fuse Holder with Fuse, Black
The Renogy 15A fuse holder is a compact, durable option for outdoor solar systems requiring reliable circuit protection at a moderate load. Its IP67 waterproof rating and high current capacity make it suitable for many residential applications. Compared to the CNLonQ 15A holder, it offers a similar current rating but boasts a more streamlined design with auto-lock male and female connectors, simplifying installation. However, its 15A limit means it can’t support larger systems, and replacing fuses might involve some disassembly, which could be inconvenient. If space-saving and straightforward installation are priorities, this model offers dependable protection, but it’s not suitable for higher current demands.
Pros:- Waterproof IP67 rated for outdoor use
- High current capacity at 15A
- Easy to connect with auto-lock connectors
Cons:- Limited to 15A current, unsuitable for larger systems
- Fuse replacement may require disassembly
Best for: Small residential solar setups or portable applications needing reliable 15A protection in tight spaces
Not ideal for: High-current or commercial systems exceeding 15A, where higher-rated fuse holders are necessary
- Rated Current:15A
- Rated Voltage:1000V DC
- Protection Class:IP67
- Contact Resistance:1mΩ
- Suitable Connector:Male and Female
- Temperature Range:-40 to +125°C
Our verdict“This compact, waterproof fuse holder is well-suited for small-scale solar projects where space is limited and 15A is sufficient.”
Vansdon 2PCS 15A Solar Fuse Holder Inline for Solar Panel and Controller
This fuse holder excels in outdoor PV setups where safety and durability are priorities. Made from flame-retardant, waterproof materials with an IP67 rating, it offers peace of mind in harsh weather conditions. Its high-quality construction surpasses basic plastic options like the Renogy 15A, providing better protection against environmental elements. However, the 15A limit makes it less suitable for high-current systems, and the absence of included fuses means additional purchases. Compared to other waterproof options, this model’s UL94-V certification adds an extra layer of safety assurance. It’s ideal for those seeking a reliable, weatherproof inline fuse holder that doesn’t compromise on safety but is limited to modest current loads.
Pros:- High-quality, flame-retardant, waterproof construction ensures durability outdoors
- Easy to install with a locking mechanism for stable operation
- Certified to safety standards with UL94-V, TUV, and CE
Cons:- Limited to 15A current rating, unsuitable for high-current applications
- No included fuse, requiring an extra purchase
Best for: DIY solar enthusiasts installing outdoor PV systems needing durable overcurrent protection.
Not ideal for: High-power commercial setups above 15A that require higher current capacity and more robust fuse options.
- Part Number:SOLAR FUSE-05
- Item Weight:2.39 ounces
- Product Dimensions:5.1 x 1 x 2.2 inches
- Size:15A 2PCS
- Waterproof Rating:IP67
- Rated Voltage:1000V
Our verdict“This fuse holder is best for outdoor installations where safety, waterproofing, and moderate current protection are needed.”
5 Pcs 10A Solar Fuse Holder Inline with Male and Female Connectors, IP68 Waterproof
This set provides a convenient solution for multiple low-current solar circuits, with a focus on affordability and ease of use. Its IP68 waterproof rating and corrosion-resistant copper and PPO materials outperform less protected options like the Renogy 15A fuse holder, especially in dusty or wet conditions. The inclusion of five fuse holders and spare fuses adds value for larger installations. However, the 10A fuse rating limits its applicability to smaller or low-current systems, making it less suitable for higher-power setups like the 25A high-voltage fuse holder. Compared to single units, this set offers savings but sacrifices higher current capacity, making it ideal for multiple small-scale PV projects.
Pros:- Waterproof IP68 rating and corrosion-resistant materials ensure durability outdoors
- Includes five fuse holders plus spare fuses for convenience
- Easy to install with inline connectors suitable for various solar setups
Cons:- Limited to 10A fuse rating, not suitable for larger systems
- Designed specifically for solar applications, limiting versatility
Best for: DIYers managing several small solar circuits requiring reliable, waterproof protection on a budget.
Not ideal for: High-current or large-scale solar installations exceeding 10A per circuit, where capacity is critical.
- Number of pieces:5
- Fuse rating:10A
- Waterproof rating:IP68
- Material:Copper, PPO
- Package dimensions:6.18 x 3.39 x 2.24 inches
- Item weight:10.1 ounces
Our verdict“This product offers a practical, waterproof solution for multiple small solar circuits with budget-friendly convenience.”
Solar Fuse Holder, 1000V DC PV Inline Fuse Connector, 2-Pack 15A
This pair of 15A fuse holders is tailored for high-voltage PV arrays, matching systems up to 1000V. Its IP67 waterproof design and UV-resistant housing outperform lower-rated waterproof options like the Vansdon 15A holder, especially in prolonged outdoor exposure. The inclusion of disconnect wrenches simplifies maintenance, making it user-friendly. However, the 15A capacity may restrict use in larger systems, and proper installation is crucial to maintain waterproof integrity. Compared to smaller amperage options, this set suits larger, more demanding solar installations but isn’t ideal for systems requiring higher current ratings. It makes sense for those prioritizing durability and safety at high voltages in outdoor environments.
Pros:- Designed for high-voltage (1000V) systems, suitable for large PV arrays
- Includes tools for easy installation and maintenance
- UV-resistant housing and waterproof IP67 protection ensure outdoor longevity
Cons:- Limited to 15A, not suitable for higher current needs
- Requires careful installation to maintain waterproof sealing
Best for: Professional or serious DIY installers working on high-voltage solar projects needing reliable, durable fuse protection.
Not ideal for: Low-voltage or small-scale residential systems under 15A that do not require high-voltage rated components.
- Voltage:1000V DC
- Current:15A
- Waterproof Rating:IP67
- Includes:2 disconnect wrenches
Our verdict“This fuse holder is ideal for high-voltage solar setups demanding robust, weatherproof circuit protection.”
PV In-Line Fuse – 1000V Solar Fuse Holder, Weatherproof and Fire-Safe, Quick Installation (20A, 1 Pack)

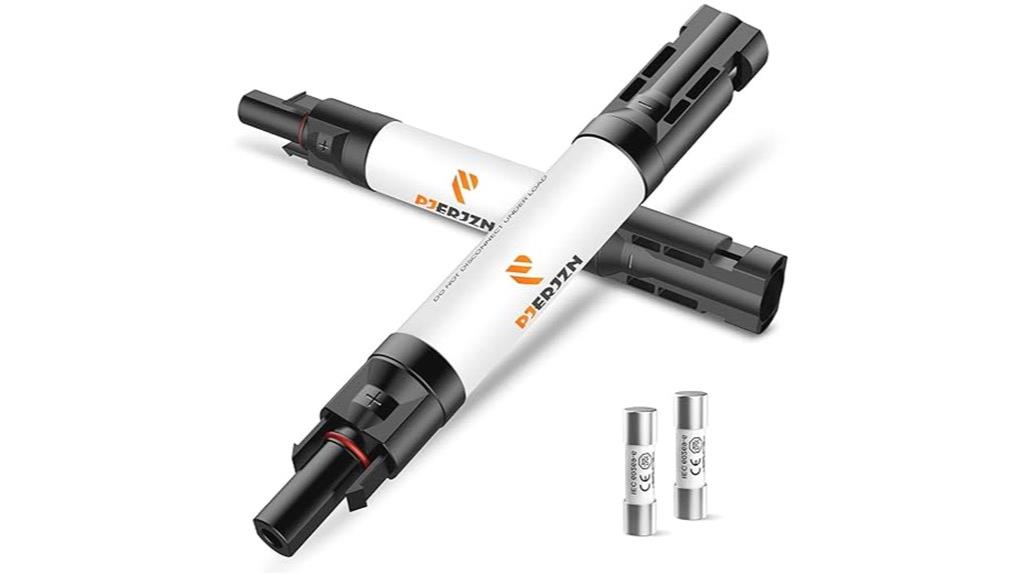

This fuse holder emphasizes quick, straightforward installation, suitable for outdoor PV systems with up to 20A loads. Its weatherproof and fire-safe design, with UV-resistant PPE housing and sealing gaskets, surpasses simpler plastic options like the Vansdon 15A holder in durability. The inclusion of tool-free connectors makes setup easier, but the 20A limit restricts use in higher-current systems. For larger or more complex PV arrays, this offers a balanced solution combining safety, ease of use, and weather resistance. Compared to products with lower current ratings, it provides a little more headroom for moderate systems, though it isn’t intended for very high-power applications.
Pros:- Weatherproof, UV resistant, and fire-safe for outdoor durability
- Quick, tool-free installation with male and female connectors
- Rated for high voltage (1000V) with long-lasting materials
Cons:- Limited to 20A, unsuitable for larger systems
- Requires proper sealing during installation to maintain weatherproofing
Best for: Solar installers and hobbyists needing a quick-to-install, weatherproof fuse for outdoor PV projects up to 20A.
Not ideal for: High-current or industrial PV systems exceeding 20A, where more robust fuse holders are necessary.
- Voltage:1000V
- Current:20A
- Waterproof:Yes
- Includes:Disconnect wrenches
Our verdict“This fuse holder makes installation quick and safe for outdoor systems up to 20A, with reliable weatherproofing.”
25A 1000V Solar Fuse Holder Inline with 5PCS Male and Female Connectors
This fuse holder targets high-current, demanding PV systems, with a 25A rating and 1000V capacity. Its high-temperature and corrosion-resistant materials ensure long-term performance in harsh environments, outperforming lower-rated options like the Vansdon 15A holder in heavy-duty scenarios. The standardized connectors facilitate quick installation, but the 25A limit may still restrict its use in very large or high-power systems, and proper sealing during installation remains critical. Compared to 15A or 20A options, this device offers greater current capacity, making it suitable for larger or more industrial-grade solar setups. It is a solid choice where durability and high amperage are paramount but not meant for systems exceeding 25A.
Pros:- High-temperature, corrosion-resistant construction ensures longevity
- Standardized connectors allow for quick, secure installation
- Designed for high-voltage (1000V) and high-current (25A) applications
Cons:- Limited to 25A, not suitable for very high-power setups
- Requires careful installation to maintain waterproofing and safety
Best for: Engineers or advanced DIYers working on high-current outdoor PV systems requiring resilient, high-amperage fuse protection.
Not ideal for: Small or low-power residential PV systems under 15A, where such high capacity isn’t necessary and might be overkill.
- Current Rating:25A
- Voltage Rating:1000V
- Connectors:5PCS male and female
Our verdict“This fuse holder is best suited for large-scale, high-current solar installations in demanding environments.”
30A Solar PV Inline Fuse Holder Waterproof Connector, 5 Pcs
This set of five waterproof fuse holders stands out for providing a durable, weatherproof connection solution in outdoor solar setups. Made from robust PPO material with an IP67 rating, they excel in harsh conditions where exposure to moisture and dust is common. Compared with the Vansdon 15A holders, these are rated for higher current (30A) but lack included fuses, meaning you need to select the right fuse separately. The auto-lock connection enhances ease of installation, but the need to calculate fuse size beforehand can be a hurdle for less experienced users. These holders are ideal for larger or more demanding systems where reliable, waterproof connections are essential, but their limited to 30A means they aren’t suitable for high-current applications.
Pros:- Waterproof and durable for outdoor environments
- Auto-lock feature simplifies connections
- Compatible with a range of solar cables (AWG 14-10)
Cons:- Requires user to select and purchase appropriate fuse separately
- Limited to 30A, not suitable for higher power systems
Best for: Homeowners or installers managing outdoor solar arrays requiring sturdy, waterproof connectors for higher current circuits.
Not ideal for: Small or low-power setups where 30A capacity might be excessive or where a plug-and-play solution is preferred without fuse calculation.
- Number of Pieces:5
- Current Rating:30A
- Voltage:1000V
- Material:PPO
- Waterproof Rating:IP67
- Compatible Cable Range:AWG 14-10
Our verdict“This set is best suited for users needing rugged, waterproof connectors for larger outdoor solar projects where fuse size customization is manageable.”
Vansdon 5PCS 15A Solar Fuse Holder Inline for Solar Panel and Controller
Compared to the larger-capacity options, the Vansdon 15A fuse holders are tailored for smaller systems where safety and simplicity matter most. Made from high-quality flame-retardant materials with an IP67 waterproof rating, they are well-suited for outdoor use and meet strict safety standards like UL94-V, TUV, and CE. Their plug-and-play design makes installation straightforward, but their 15A limit restricts use in higher-power systems, which makes them less versatile for expanding setups. These holders are ideal for homeowners with modest solar arrays or for those seeking a reliable, safety-certified protection point, though they don’t support higher current ratings without replacing with larger capacity units.
Pros:- High-quality, flame-retardant construction
- IP67 waterproof rating for outdoor durability
- UL94-V, TUV, and CE safety certifications
Cons:- Limited to 15A, not suitable for higher current needs
- Available only in black, limiting aesthetic options
Best for: Residential solar users with small to medium systems needing certified, easy-to-install overcurrent protection.
Not ideal for: Large commercial or high-capacity solar installations requiring 20A or higher fuses, since these are limited to 15A.
- Part Number:SOLAR FUSE-06
- Item Weight:6.7 ounces
- Product Dimensions:5.1 x 1 x 2.2 inches
- Size:15A 5PCS
- Waterproof Rating:IP67
- Rated Voltage:1000V
Our verdict“This pick makes the most sense for users prioritizing safety and ease of installation in small to medium outdoor solar systems.”
CNLonQ 30A Solar Fuse Holder Inline IP67 Waterproof with 10x38mm Fuse (2 pcs)
This CNLonQ fuse holder provides robust outdoor circuit protection, matching the 30A capacity of the waterproof options like the Renogy fuse holder, but with the added convenience of included fuses. Its IP67 rating and durable PPO housing make it suitable for demanding environments. Compared to the smaller 15A Vansdon holders, this model supports higher currents, making it better suited for larger installations. However, it’s limited to 10x38mm fuse sizes, which restricts flexibility if different fuse ratings are needed. It’s a solid choice for systems that use standard fuse sizes and require high waterproof standards, but users should note the limited fuse compatibility.
Pros:- High waterproof IP67 rating for outdoor use
- Includes fuses for immediate installation
- Durable PPO and tinned copper terminals ensure longevity
Cons:- Limited to 10x38mm fuse size, reducing flexibility
- No detailed user reviews available to confirm ease of use
Best for: Outdoor solar system installers requiring high-current, waterproof fuse holders with included fuses for quick setup.
Not ideal for: Systems needing non-standard fuse sizes or custom fuse ratings, as it’s restricted to 10x38mm fuses.
- Material:PPO flame retardant housing
- Waterproof Rating:IP67
- Fuse Size:10x38mm
- Voltage:DC 1000V
- Quantity:2 pcs
- Dimensions:5.12 x 0.75 x 0.75 inches
Our verdict“This fuse holder suits outdoor applications demanding high current capacity and quick installation with included fuses, but offers limited fuse size options.”
Solar Panel Fuse Holder 1000V with PV Fuse Inline Connector 10A/15A/20A/30A Kit, Waterproof IP67, Includes Wrench
This all-in-one kit offers a comprehensive solution for solar system protection, including two fuse holders, multiple fuse ratings, and a wrench for installation. Its weather-resistant design with IP67 sealing and UV resistance makes it suitable for extreme outdoor conditions. Unlike simpler holders like Vansdon’s 15A model, this kit supports multiple fuse ratings, providing flexibility for various system sizes. The inclusion of a wrench simplifies maintenance but requires manual installation, which might challenge beginners. It’s particularly effective for those who want a complete package to install or upgrade their solar circuits without sourcing additional parts separately.
Pros:- Complete kit with fuses and wrench for easy setup
- Weather-resistant, high-quality materials
- Supports multiple fuse ratings for flexibility
Cons:- Limited fuse ratings included, additional fuses may be needed
- Requires manual installation, not fully plug-and-play for beginners
Best for: DIY solar installers and technicians seeking a versatile, all-in-one protection solution with maintenance tools included.
Not ideal for: Users seeking plug-and-play solutions or those with very specific fuse ratings outside the provided options, as additional fuses may be necessary.
- Voltage:1000V
- Fuse Ratings:10A, 15A, 20A, 30A
- Material:PC/PPO
- Waterproof Rating:IP67
- Temperature Range:-40°F to +221°F
Our verdict“This kit fits well for users needing a versatile, weatherproof protection package with the tools for installation and maintenance in outdoor solar projects.”
20A Solar Fuse Holder Inline, 2PCS DC 1000V Solar PV Fuse for Solar Panel and Controller
Compared with higher-capacity options like the 30A waterproof holders, this 20A set emphasizes straightforward, reliable circuit protection suitable for smaller or mid-sized systems. Constructed with corrosion-resistant, waterproof materials like IP67-rated housing, they are easy to install with standard terminal connections. The automatic fuse interruption offers clear overcurrent protection, but the 20A rating limits their use in larger systems. These holders are ideal for users wanting a simple, durable solution for moderate solar setups, although they may fall short where higher current capacity is necessary for expanding systems.
Pros:- High waterproof and dustproof IP67 rating
- Automatic fuse interruption for safety
- Easy to install with standard connections
Cons:- Limited to 20A, not suitable for high-capacity systems
- Only includes two fuse holders, may require more for larger setups
Best for: Small to medium-sized solar systems requiring dependable protection at 20A without complexity.
Not ideal for: Large or high-current systems where 20A fuses are insufficient, or users needing multiple fuse ratings in one package.
- Rated current:20A
- Rated voltage:DC 1000V
- Connector system:ф4mm
- Contact resistance:0.5mΩ
- Temperature range:-40°C to +205°C
- Waterproof level:IP67
Our verdict“This set suits users who want a simple, reliable, waterproof protection solution for moderate solar applications, but isn’t suitable for high-power or expanding systems.”
How We Picked
This selection process focused on several key factors to ensure each product meets practical needs. Performance criteria included current capacity, waterproof ratings, and ease of installation. Build quality and durability were evaluated through material specifications and user feedback, emphasizing outdoor resilience. Maintenance considerations, such as fuse accessibility and connector quality, also played a role. Products were ranked to balance value and features, with top picks offering a combination of safety, reliability, and affordability. Variations in ratings and reviews helped identify which fuse holders stand out for different types of solar setups.Factors to Consider When Choosing Inline Fuse Holder Solar
Choosing the right inline fuse holder for your solar system requires understanding several critical factors. Beyond basic specifications, consider how environmental conditions, system size, and ease of use influence your decision. Making an informed choice helps avoid costly replacements or safety hazards down the line.Waterproofing and Weather Resistance
Outdoor solar installations demand fuse holders with high waterproof ratings like IP67 or IP68, which protect against dust, water, and corrosion. In exposed environments, lower-rated fuse holders may fail prematurely, leading to system outages or safety risks. Consider the typical climate—if rain or humidity is frequent, investing in a highly rated waterproof fuse holder is wise, even if it costs more initially.
Current Capacity and Compatibility
Your solar system’s maximum current output determines the fuse holder’s required capacity. Using a fuse holder rated below your system’s max current risks overloads and potential damage. Conversely, oversizing can lead to unnecessary costs and complexity. Always verify that the fuse holder supports the fuse amperage recommended for your setup and consider future expansion plans.
Ease of Installation and Maintenance
Pre-wired fuse holders with quick-connect features simplify installation, especially for DIY projects. Connectors that fit standard wire sizes reduce wiring errors and speed up setup. Additionally, look for fuse holders with accessible fuse slots or quick-release mechanisms to facilitate maintenance and fuse replacement without dismantling the entire system.
Build Quality and Material Durability
Durable materials like high-grade plastics and corrosion-resistant metals extend the lifespan of fuse holders in outdoor conditions. Cheap or poorly manufactured units may crack, degrade, or fail under UV exposure or temperature fluctuations. Investing in quality can prevent costly replacements and maintain system safety over time.
Price Versus Features
While budget options may cover basic needs, they often lack advanced waterproofing or high current ratings. Premium models tend to include better protections, connectors, and fire safety features but come at a higher cost. Consider your specific environment, system size, and safety requirements to determine the best value for your investment.
Frequently Asked Questions
Can I use a standard automotive fuse holder for my solar system?
Using an automotive fuse holder may seem convenient, but solar systems often require fuse holders rated for higher voltages and specific environmental conditions. Automotive fuse holders typically lack the waterproofing and corrosion resistance needed outdoors. For safety and longevity, selecting a fuse holder designed explicitly for solar applications ensures proper protection and durability.
What is the ideal waterproof rating for outdoor solar fuse holders?
For outdoor solar setups, a waterproof rating of IP67 or higher is generally recommended. IP67 provides protection against dust and temporary immersion in water, suitable for most outdoor conditions. IP68 offers even greater water resistance for prolonged exposure, making it ideal for harsh environments or installations subject to heavy rain or humidity.
How do I choose the right fuse capacity for my solar system?
Selecting the correct fuse capacity involves matching or slightly exceeding your system’s maximum current output. For example, if your panel or controller outputs 20 amps, a 20A fuse is appropriate. Using a fuse rated too low risks nuisance blowing, while too high could allow dangerous current flow. Always consult your system specifications and consider future expansion when choosing fuse ratings.
Are waterproof fuse holders more expensive, and are they worth the cost?
Waterproof fuse holders typically cost more than basic models, but their enhanced protection against moisture and dust makes them a worthwhile investment for outdoor applications. They help prevent corrosion and failures that could otherwise lead to system downtime or safety hazards. For any outdoor or exposed installation, prioritizing waterproofing offers long-term value and peace of mind.
Is it better to buy a fuse holder with connectors or without?
Fuse holders with pre-installed connectors can significantly simplify installation, especially for DIY projects or quick setups. They reduce wiring errors and make maintenance easier. However, if you prefer custom wiring or need to adapt to existing cables, a fuse holder without connectors might offer more flexibility. Consider your skill level and installation environment when choosing between these options.
Conclusion
For most users seeking a reliable, all-weather solution, the Renogy 30A Waterproof In-Line Fuse stands out as the best overall choice due to its durability and high capacity. Budget-conscious DIYers or those with less exposed setups might find the Vansdon 15A Fuse Holders sufficient, offering value without sacrificing essential features. Those installing in extreme conditions should prioritize units with IP68 ratings. Beginners will appreciate models with simple connectors, while professionals might opt for higher-capacity or customizable options. Tailor your choice based on your system size, environment, and safety priorities for the best results.
