If you’re looking to optimize your solar system, I recommend exploring some of the top solar battery monitor shunts available. From the Renogy 500A with a large color display to Bluetooth-enabled Victron SmartShunt models, these tools give me precise data on voltage, current, and capacity. They work with various battery types and system voltages, ensuring reliable performance. Stick around, and you’ll discover more options to choose the perfect monitor for your needs.
Key Takeaways
- High-accuracy shunts ensure precise measurement of current and voltage, optimizing solar system performance and battery longevity.
- Compatibility with various battery types and voltage ranges allows flexible integration into different solar setups.
- Durable, weatherproof designs withstand outdoor conditions, ensuring reliable monitoring in harsh environments.
- Easy installation with secure connectors and clear displays facilitates quick setup and real-time data access.
- Wireless connectivity features like Bluetooth enable remote monitoring and detailed system analysis for better management.

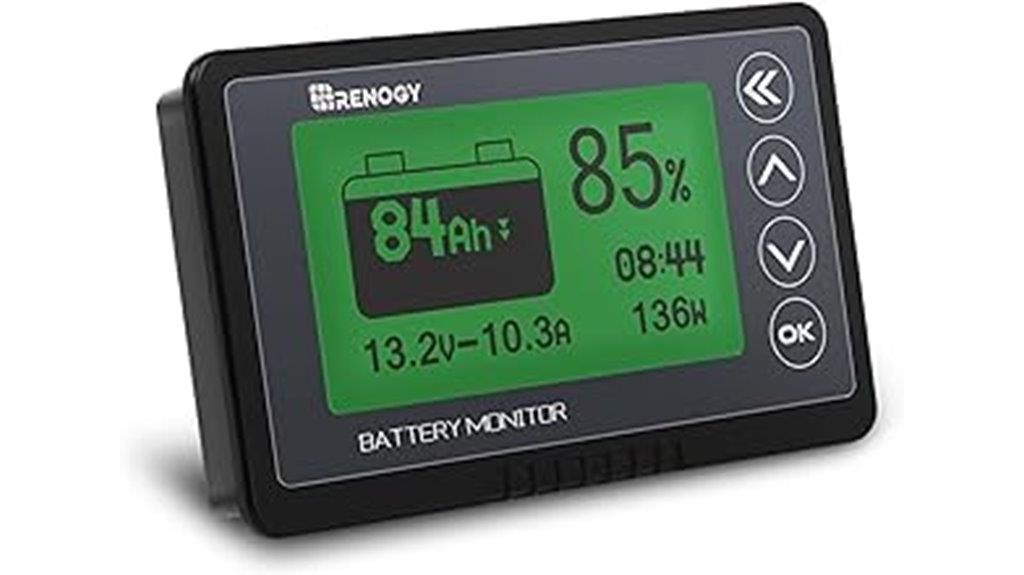

Renogy 500A Battery Monitor with Shunt
If you’re looking for an accurate and versatile battery monitor, the Renogy 500A Battery Monitor with Shunt is an excellent choice. It offers 1% measurement accuracy, supporting 12V, 24V, and 48V systems with various battery types like Lead Acid, Lithium Iron Phosphate, and Nickel-metal hybrid. Its compact, black design (just 75 grams) fits easily into any setup. The monitor displays voltage, current, power, capacity, and degradation rate, with alarms for over- and under-discharge. Its high-definition, adjustable backlit screen ensures clear readings from a distance. Easy to install, it’s perfect for automotive, RV, marine, or home backup systems.
Best For: individuals seeking a highly accurate, versatile battery monitor for various systems, including automotive, RV, marine, and home backup setups.
Pros:
- Supports 1% measurement accuracy across multiple battery types and voltages (12V, 24V, 48V).
- Features a high-definition, adjustable backlit display for clear readings from a distance.
- Easy to install with all necessary components included and compatibility with extended shielded cables.
Cons:
- Extending the shielded cable may require careful wiring and soldering, which can be challenging for some users.
- Limited to a maximum voltage of 120V, so not suitable for higher voltage systems.
- Requires a lithium-ion battery for operation, which may need replacement over time.

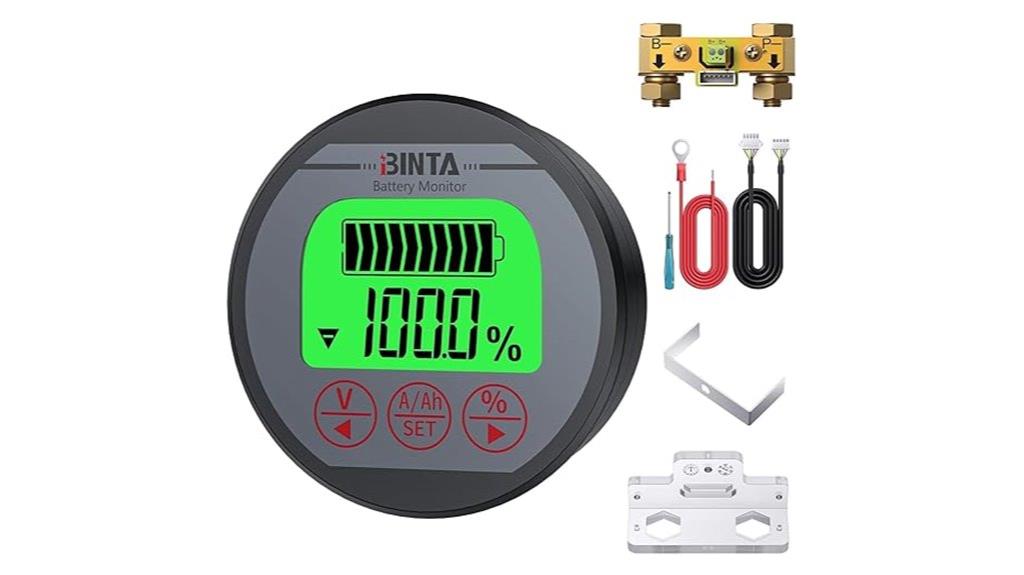

BINTA Battery Monitor with Shunt (8-120V, 0-500A)
The BINTA Battery Monitor with Shunt stands out for its ability to accurately track high-current systems up to 500A, making it ideal for anyone managing large or demanding battery setups. It provides real-time insights into the state of charge, remaining capacity, voltage, and current, helping optimize performance and extend battery life. Compatible with 8-120V lead-acid, LiFePO4, and lithium-ion batteries, it suits RVs, boats, solar systems, and more. Its crisp backlit display ensures visibility in any lighting, and the auto-sleep mode conserves energy. Easy to install and reliable, it’s a versatile choice for all-encompassing power monitoring.
Best For: RV, boat, and solar power system owners seeking accurate, high-current battery monitoring to optimize performance and extend battery lifespan.
Pros:
- Supports high peak current detection up to 500A, suitable for demanding battery systems.
- Real-time tracking of state of charge, voltage, current, and capacity ensures comprehensive monitoring.
- Easy installation with all-in-one design, backlit display, and auto-sleep energy-saving mode.
Cons:
- May require some technical knowledge for proper wiring and setup.
- Limited to 8-120V systems, so not suitable for very high-voltage applications.
- The size of cables and shunt may be a consideration for compact installations.
Victron Energy SmartShunt Battery Monitor (Bluetooth)
For anyone seeking a thorough battery monitoring solution, the Victron Energy SmartShunt Battery Monitor (Bluetooth) stands out with its seamless wireless data sharing and real-time insights. It easily integrates into any system, providing detailed metrics like State of Charge, Voltage, Current, and Amp Hours via Bluetooth to the VictronConnect app. I appreciate its high-precision measurement technology, ensuring reliable data. The device also supports system integration through VE.Smart Networking, enabling remote management and optimized charging. Plus, its auxiliary features allow for versatile applications, including mid-point or second battery monitoring. Overall, it’s a compact, user-friendly option that keeps my solar system running efficiently.
Best For: DIY enthusiasts, RV owners, and solar system users seeking precise, wireless battery monitoring with easy smartphone integration.
Pros:
- Seamless wireless data sharing via Bluetooth for real-time monitoring
- High-precision measurement technology ensures reliable insights
- Versatile auxiliary connections for multiple applications and system integration
Cons:
- Requires a compatible smartphone and VictronConnect app for full functionality
- May involve a learning curve for users unfamiliar with system integration features
- Limited to Bluetooth connectivity, which might not suit larger or more complex setups

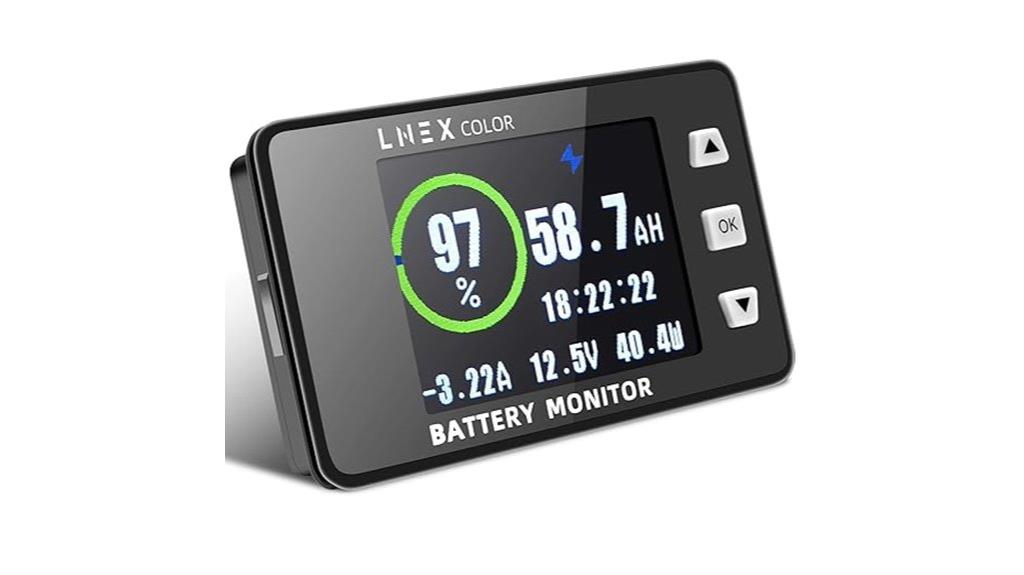

500A Battery Monitor with 2.4″ Color Screen and 16ft Wire
A battery monitor with a 2.4-inch color screen and a 16-foot wire offers an excellent balance of detailed display and flexible installation, making it ideal for those managing high-capacity or complex solar setups. It provides real-time voltage, current up to 500A, battery capacity, power, and state of charge, supporting various battery types and voltages from 8V to 100V. The large LCD is easy to read, even in low light, and the shielded cable allows for versatile placement. Its accurate measurements, safety alarms, and durable build make it a reliable choice for RVs, boats, or solar systems, especially where installation flexibility matters.
Best For: RV, boat, and solar system users seeking a versatile, high-capacity battery monitor with a clear display and flexible installation options.
Pros:
- Provides real-time voltage, current up to 500A, capacity, power, and SOC with high accuracy.
- Supports a wide range of battery types and voltages from 8V to 100V, suitable for various applications.
- Features a large, backlit color LCD display for easy reading in low-light conditions and includes a durable 16ft shielded cable for flexible placement.
Cons:
- Capacity percentage readings can be inaccurate during partial discharges or power fluctuations.
- Not rated for outdoor or wet environments, lacking IP67 waterproof protection.
- Customer support and troubleshooting guidance may be limited, leading to some user difficulties.

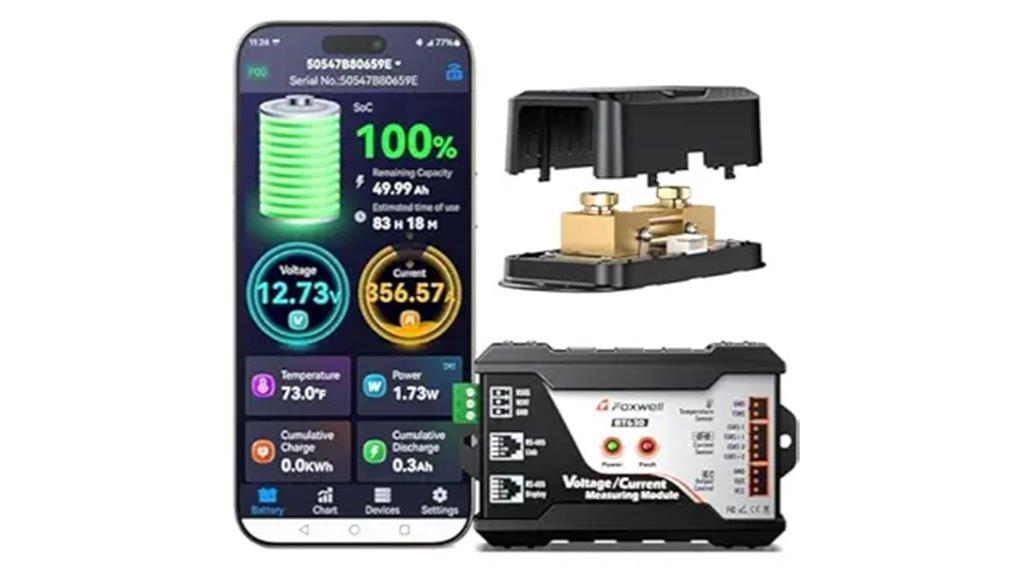

FOXWELL BT630 Battery Monitor with Bluetooth Smart Shunt
If you need a reliable, high-precision battery monitor capable of handling heavy loads, the FOXWELL BT630 with Bluetooth Smart Shunt stands out as an excellent choice. It supports up to 600A and 120V loads, providing real-time data on voltage, current, power, temperature, SOC, capacity, and runtime. Its industrial-grade accuracy guarantees stable readings within ±0.4%, and its self-calibrating shunt eliminates manual adjustments. The monitor features customizable alerts for voltage, temperature, and other parameters, with Bluetooth connectivity via the PRO BMS app for easy control. Designed for tough environments, it’s perfect for RVs, marine, and solar systems, helping extend battery life and prevent overloads.
Best For: RV owners, marine enthusiasts, and off-grid solar users seeking a high-precision, reliable battery monitoring solution for heavy-duty systems.
Pros:
- Supports up to 600A and 120V loads, ideal for large battery systems
- Industrial-grade accuracy with ±0.4% stability for precise data tracking
- Self-calibrating shunt eliminates manual adjustments, saving time and ensuring reliability
Cons:
- Installation may require some technical expertise despite clear instructions
- Bluetooth connectivity depends on app compatibility and signal strength
- Higher price point compared to basic battery monitors with fewer features

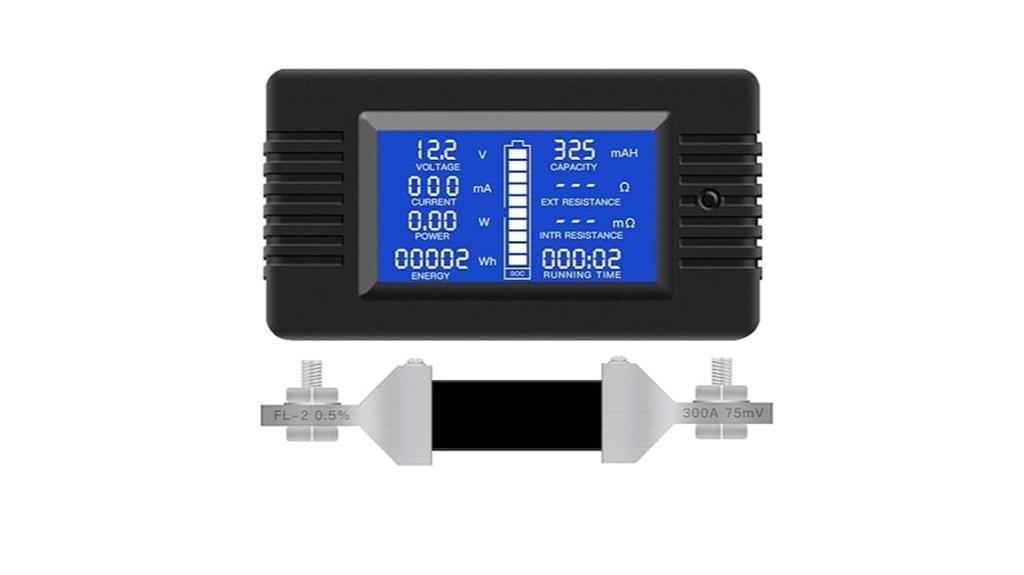

DC Battery Monitor Meter, 0-200V/0-300A, LCD Display, Suitable for RV/Car/solar Batteries
This DC Battery Monitor Meter stands out as an ideal choice for those managing large battery systems in RVs, cars, or solar setups, thanks to its wide voltage (0-200V) and current (0-300A) measurement range. It features a large LCD display with a blue backlight, providing clear readings in sunlight or darkness. The device measures voltage, current, power, capacity, and energy, with accuracy within 1%. Its simple push-in terminal design makes installation straightforward, though some users modify connectors for safety. Perfect for permanent setups, it helps monitor your batteries’ health, energy consumption, and overall performance efficiently.
Best For: DIY enthusiasts, RV owners, and solar system users seeking an affordable, accurate battery monitoring solution for large voltage and current ranges.
Pros:
- Accurate measurements within 1%, reliable voltage and current readings consistent with multimeters
- Large LCD display with blue backlight for easy readability in sunlight and darkness
- Simple push-in terminal design facilitates straightforward installation and setup
Cons:
- Connectors can be unreliable; modifications or screw-type terminals recommended for safety and durability
- Manual setup instructions are unclear, requiring some troubleshooting and familiarity with wiring
- Not waterproof, making it unsuitable for outdoor or wet environments without additional protection
LiTime 500A Battery Monitor with Shunt
The LiTime 500A Battery Monitor with Shunt stands out as an excellent choice for those managing large battery systems in RVs, motorcycles, golf carts, and solar setups. It supports 8V-120V systems and battery capacities up to 500Ah, automatically recognizing Li-ion, LiFePO4, Gel, and AGM batteries. The backlit LCD provides real-time data on voltage, current, power, capacity, and charge/discharge status, with flashing alerts for critical levels. Installation is simple, with all components included—shunt, wires, and manual. Its reliable alarms and easy setup make it a powerful tool for monitoring and optimizing your battery performance.
Best For: RV owners, motorcycle enthusiasts, golf cart users, and solar system controllers seeking reliable, real-time battery monitoring for large-capacity 8V-120V systems.
Pros:
- Supports a wide range of battery types including Li-ion, LiFePO4, Gel, and AGM for versatile use
- Clear, backlit LCD display provides comprehensive real-time data on voltage, current, power, and capacity
- Easy installation with all necessary components included, suitable for various applications
Cons:
- Limited to systems between 8V and 120V, not suitable for higher voltage setups
- Requires proper manual setup and configuration for optimal performance
- Alarm system may be frequent if thresholds are set too high or low, potentially causing alert fatigue

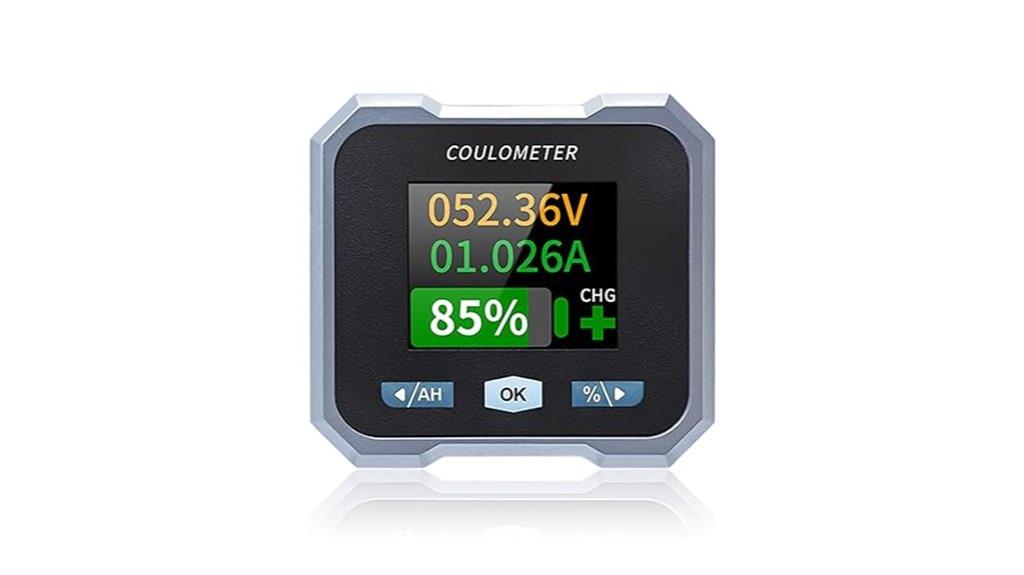

Battery Monitor for RV, Motorcycle, Solar Panel with LCD Display
A battery monitor with an LCD display is an excellent choice for RV owners, motorcyclists, and solar enthusiasts who want real-time insights into their battery’s health and performance. It supports up to 500A (max 400A continuous) and a voltage range of 10-100V, compatible with various battery types like lithium iron phosphate and lead-acid. Its waterproof, compact design guarantees durability in rainy conditions. The high-definition color screen clearly shows charge percentage, voltage, current, wattage, and power, with user-friendly themes. Easy to install, it helps monitor multiple batteries and provides accurate data, making it a reliable tool for managing your battery system efficiently.
Best For: RV owners, motorcyclists, and solar energy enthusiasts seeking real-time battery monitoring with a waterproof, easy-to-read display.
Pros:
- Accurate voltage and current detection suitable for various battery chemistries and voltages.
- Waterproof design with silicone gasket sealing, ideal for outdoor and rainy conditions.
- High-definition color LCD screen provides clear, easy-to-read data with user-friendly themes.
Cons:
- Reports of connector overheating and potential malfunction within weeks of use.
- Bluetooth connectivity can be unreliable with limited range and frequent disconnections.
- Lacks advanced features like data logging or automatic state of charge reset, limiting long-term monitoring.
DC Multifunction Battery Monitor Meter with Shunt
If you’re looking for an affordable yet versatile battery monitor, the DC Multifunction Battery Monitor Meter with Shunt stands out as a solid choice. It offers nine measurement parameters, including voltage, current, power, and energy, with a high accuracy of 1%. The full-view LCD screen ensures easy readability, day or night, and the backlight adds convenience. Installation is straightforward thanks to press terminals, though setup can be tricky. While it doesn’t show current flow direction and some users report measurement discrepancies, it’s a reliable, cost-effective option for small solar, RV, or automotive systems. Overall, it provides a thorough overview at an attractive price point.
Best For: DIY enthusiasts and small-scale solar or RV users seeking an affordable, versatile battery monitoring solution with basic measurement functions.
Pros:
- High measurement accuracy of 1% across multiple parameters
- Easy wiring with press terminals and a clear, high-contrast LCD display
- Supports programming of limits and resetting for customizable monitoring
Cons:
- Does not indicate current flow direction, limiting detailed analysis
- Some measurement discrepancies reported, especially with voltage and current readings
- Build quality of components like the shunt may be modest and less durable

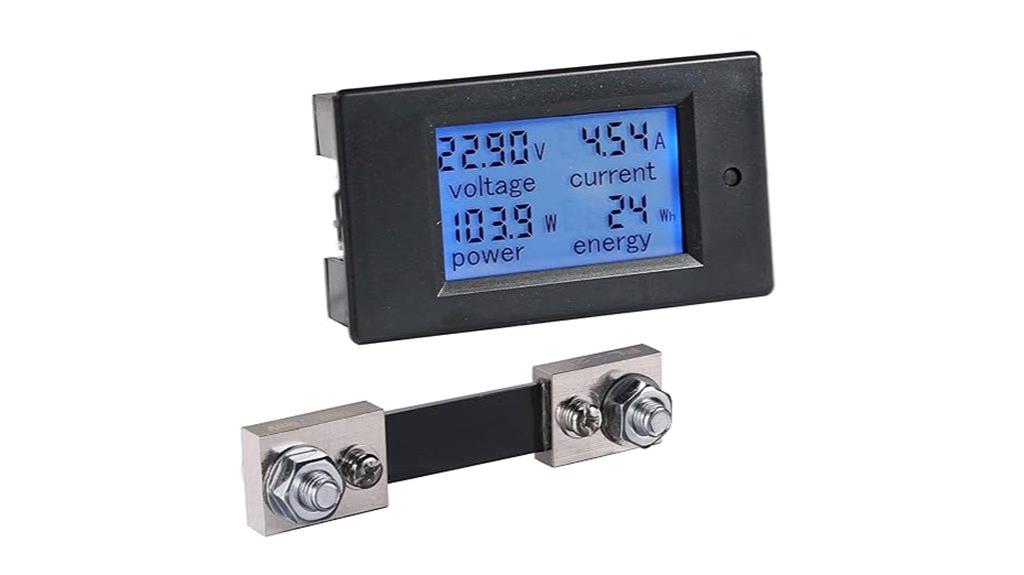

DC Multifunction Battery Monitor Meter (0-300V, 0-100A)
For anyone monitoring low-voltage, high-current systems like solar arrays or RV batteries, the DC Multifunction Battery Monitor Meter (0-300V, 0-100A) offers precise readings and all-encompassing data. It measures voltage, current, power, and energy consumption, with a bidirectional ammeter to show charge and discharge flows. Its large LCD display with backlight toggle ensures readability from different angles. Built from high-temperature resistant PBT material, it’s suitable for various applications like photovoltaic inverters and DIY projects. Although some users report durability issues, its accuracy, resettable energy data, and easy wiring make it a solid choice for basic monitoring needs.
Best For: DIY electronics enthusiasts, RV owners, and solar system monitors seeking an affordable, versatile DC battery monitor with comprehensive data and easy installation.
Pros:
- Accurate voltage (0.07V) and current (0.01A) readings, verified against known voltmeters
- Bidirectional ammeter to monitor charge/discharge flow with preserved energy data when powered off
- Large LCD display with manual backlight toggle for clear visibility from various angles
Cons:
- Durability issues reported; display may malfunction or fail after initial use
- Lacks protection circuitry, making it vulnerable to circuit spikes and power surges
- Build quality may be compromised due to low-cost components, risking damage under high current or voltage conditions
ANCEL BM1000 Bluetooth Battery Monitor with Shunt
The ANCEL BM1000 Bluetooth Battery Monitor with Shunt stands out as an ideal choice for DIY enthusiasts and mobile system users who need accurate, real-time battery data. It supports DC voltages from 10 to 120V and handles currents up to 400A, making it suitable for RVs, marine, solar, and off-grid setups. Its precise readings of voltage, current, amp-hours, and SOC help optimize battery health and prevent over-discharge. The Bluetooth connection offers easy remote monitoring via mobile apps, with clear graphs and alerts. Its durable build, simple installation, and compatibility with various battery types make it a versatile, cost-effective tool for managing energy systems effectively.
Best For: DIY enthusiasts, RV and marine users, and off-grid solar system owners seeking accurate, real-time battery monitoring and management.
Pros:
- Highly accurate ±1% readings for voltage, current, and SOC, ensuring reliable data.
- Bluetooth connectivity allows convenient remote monitoring via mobile apps within 30 feet.
- Durable, compact design with sturdy wiring and sealed shunt housing suitable for mobile environments.
Cons:
- Installation instructions can be confusing and lack detailed guidance for advanced features.
- Occasional connectivity issues with the app may hinder real-time data access.
- Short shunt cables may limit flexibility for larger or more complex setups.

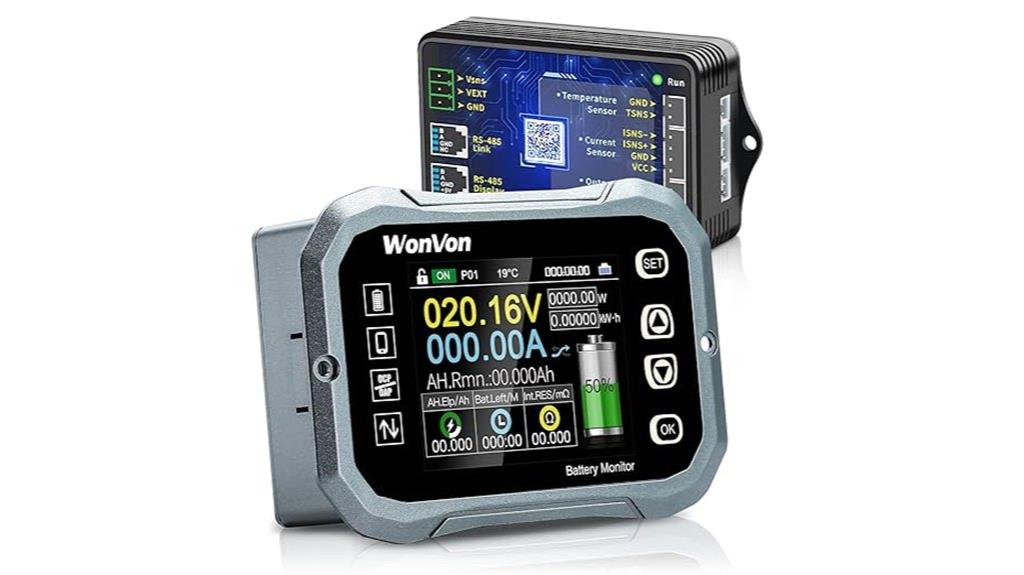

WonVon Battery Monitor with Shunt 400A for RV, Solar, Motorcycle
The WonVon Battery Monitor with Shunt 400A stands out as an ideal choice for RV, solar, and motorcycle applications, thanks to its robust 400A capacity and versatile compatibility with various battery types. It supports 0-120V batteries, including Lead Acid, Lithium Iron Phosphate, Lithium-ion, and Nickel-metal Hybrid, making it suitable for different vehicles and setups. Its 2.4-inch high-definition color LCD provides clear, easy-to-read data, while silicone buttons ensure smooth operation. With Bluetooth connectivity, you can supervise real-time battery data remotely via your phone. Easy to install and built with high-quality copper shunts, it offers reliable, low-power operation for long-term monitoring.
Best For: RV owners, solar energy enthusiasts, and motorcycle riders seeking reliable, versatile battery monitoring solutions.
Pros:
- Supports a wide range of battery types and voltages (0-120V), ensuring broad compatibility.
- Features a high-definition 2.4-inch color LCD with clear, easy-to-read display.
- Wireless Bluetooth connectivity allows remote real-time data monitoring via mobile devices.
Cons:
- Installation may require some technical knowledge for optimal setup.
- The display’s fixed mounting may limit positioning flexibility depending on the vehicle setup.
- Battery monitoring accuracy depends on proper shunt placement and calibration.
Victron Energy SmartShunt IP65 Battery Monitor (Bluetooth)
If you’re looking for a reliable, all-in-one battery monitor that can withstand tough environments, the Victron Energy SmartShunt IP65 Bluetooth model is an excellent choice. Its waterproof, dust-resistant design makes it perfect for outdoor or harsh conditions. The device provides real-time data via the VictronConnect app, offering detailed insights into State of Charge, Voltage, Current, and more—without Bluetooth pairing delays. It’s highly precise, using advanced shunt technology to guarantee accurate measurements. Plus, it integrates seamlessly with other Victron equipment through VE.Smart Networking, enabling smart system management. Its versatility includes auxiliary connections for additional monitoring or temperature sensing.
Best For: outdoor enthusiasts, RV owners, or anyone needing a durable, accurate battery monitor in tough environments.
Pros:
- Waterproof and dust-resistant IP65 design suitable for harsh conditions
- Provides real-time, detailed battery data via user-friendly VictronConnect app
- Seamless integration with other Victron devices through VE.Smart Networking for smart system management
Cons:
- Limited to a voltage range of 6.5V-70V, which may not suit all battery systems
- Requires a compatible smartphone with Bluetooth to access data
- May need additional components for full auxiliary or temperature monitoring setup
Bayite DC 6.5-100V 0-100A LCD Digital Multimeter
For solar enthusiasts and RV owners who want accurate, real-time data on their electrical systems, the Bayite DC 6.5-100V 0-100A LCD Digital Multimeter delivers essential measurements with ease. It tracks voltage, current, power, and energy on a large LCD screen, making system monitoring straightforward. The device includes a 100A current shunt and supports energy data storage even when powered off. Its manual blue backlight control ensures visibility in low-light conditions. Easy to install and wire, it’s suitable for solar setups, RVs, and battery banks, helping you optimize performance, troubleshoot issues, and manage energy consumption efficiently.
Best For: solar enthusiasts, RV owners, and battery system users seeking precise, real-time electrical monitoring to optimize performance and troubleshoot issues.
Pros:
- Provides accurate, real-time measurements of voltage, current, power, and energy on a large LCD display.
- Supports energy data storage even when powered off, aiding long-term monitoring.
- Easy to install with clear wiring instructions and manual backlight control for visibility in low-light conditions.
Cons:
- Only includes display and shunt; wires and additional accessories need to be purchased separately.
- Blue backlight may not be preferred by all users, especially in dark environments.
- Calibration involves cutting wires, which might be confusing or intimidating for some users unfamiliar with electrical wiring.
Factors to Consider When Choosing a Solar Battery Monitor Shunt
When choosing a solar battery monitor shunt, I look at how well it matches my battery type and its measurement capabilities. I also consider how easy it is to install, read, and whether it feels durable enough for long-term use. These factors help guarantee I get accurate readings and reliable performance from my system.
Compatibility With Battery Types
Choosing a solar battery monitor shunt requires careful attention to its compatibility with your battery chemistry. Different chemistries, like lead-acid, lithium-ion, or LiFePO4, have unique characteristics that can affect performance and safety. Using a shunt designed for your specific battery type helps prevent damage and guarantees accurate readings. Additionally, verify that the shunt’s voltage and current ranges match your system’s specifications—most support 8-120V and up to 500A for larger setups. It’s also important that the shunt’s measurement technology aligns with your monitor’s capabilities, whether rated at 50A, 100A, or 500A. Finally, ensure the shunt can handle your battery capacity, whether small or large, and that its connection type fits your wiring configuration for seamless installation.
Measurement Accuracy and Range
Accurate measurement is key to managing your solar system effectively, so it’s important to select a shunt that offers precise readings. Look for a shunt with at least 1% measurement accuracy to ensure your current and voltage data are reliable. It should also have a current range that covers your system’s maximum load, such as 500A for larger setups. The voltage measurement range must match your battery system, typically from 6V to 120V or higher. Additionally, check that the shunt’s resolution can detect small current changes, especially if your system experiences low load variations. Compatibility with your monitor’s specifications is essential for seamless integration and accurate data collection. Prioritizing these factors ensures your monitoring system provides trustworthy, actionable insights.
Wiring and Installation Ease
Selecting a solar battery monitor shunt that’s easy to wire and install can save you time and prevent errors. Look for a shunt with clearly labeled positive and negative terminals—this makes wiring straightforward and reduces mistakes. Choose a model with a connection method that matches your skill level, like screw terminals or push-in connectors. Make sure the cable length and type suit your system’s layout to minimize clutter and interference. An easy-to-mount design, such as a transparent holder or flat surface mount, simplifies installation, especially in tight spaces. Additionally, check that the wiring instructions are clear and detailed. This ensures a safe, reliable setup without guesswork, helping you get your solar monitoring system up and running smoothly.
Display Readability and Features
A monitor shunt with a clear and high-contrast display makes it much easier to read vital data at a glance, especially in varying lighting conditions. Adjustable brightness guarantees visibility whether you’re outdoors in bright sunlight or indoors in low light. Large fonts and a simplified interface allow quick interpretation of key parameters like voltage, current, and capacity, saving time and reducing errors. Features like backlit screens, color coding, and flashing alerts help you identify abnormal or critical battery states instantly. Multi-function displays showing multiple parameters simultaneously minimize the need to switch screens, enhancing monitoring efficiency. Additionally, a wide viewing angle prevents distortion or difficulty reading data from different positions or distances, making real-time monitoring effortless and reliable.
Durability and Build Quality
When choosing a solar battery monitor shunt, durability and build quality are vital because these components must withstand harsh environmental conditions and continuous operation. I look for shunts made from high-quality, corrosion-resistant materials like copper or stainless steel to handle exposure to moisture, dust, and temperature changes. Secure connectors and terminals are essential to prevent oxidation, loosening, or signal loss over time. I also prioritize robust insulation and weatherproof enclosures that protect internal parts from moisture and dust. Adequate thermal management, such as integrated heat sinks, ensures the shunt can handle high currents without overheating. Additionally, a sturdy build resistant to mechanical stress and vibration guarantees long-term reliability, especially in outdoor or mobile setups.
Connectivity and Data Access
Have you ever wondered if your solar battery monitor shunt can keep up with your system’s data needs? Ensuring compatibility with your monitoring system’s communication protocol is key—whether it’s Bluetooth, Wi-Fi, RS-485, or analog signals. You also want to verify that the shunt’s maximum current rating matches your system’s peak load to avoid inaccuracies or damage. Real-time data access is essential, so check if it supports remote monitoring via mobile apps or connected devices. Reliable wiring options matter too—look for secure, corrosion-resistant terminals for long-term data transmission. Finally, consider whether the shunt’s data output integrates seamlessly with your existing energy management system or third-party software, making your system easier to monitor and optimize.
Frequently Asked Questions
How Does a Shunt Affect Solar System Efficiency?
A shunt affects my solar system efficiency by accurately measuring the flow of current between my panels, batteries, and inverter. When I use a high-quality shunt, it provides precise data, helping me monitor and optimize energy usage. This minimizes energy loss, ensures my system operates at peak performance, and extends battery life. Overall, a good shunt is essential for maximizing my solar energy savings and system reliability.
Can Shunts Be Used With Multiple Battery Types?
Yes, shunts can be used with multiple battery types, but I always verify compatibility first. Different batteries have unique voltage and capacity specs, so I make sure the shunt can handle those variations. Using a shunt designed for multiple battery chemistries makes monitoring more flexible and accurate. I recommend consulting the shunt’s specifications and your batteries’ requirements to avoid any issues and optimize your solar system’s performance.
What Is the Lifespan of a Typical Solar Monitor Shunt?
In my experience, a typical solar monitor shunt lasts around 10 to 15 years. I’ve researched this, and most reputable brands design these shunts for durability, with proper maintenance extending their lifespan. Factors like environmental conditions and electrical load can influence longevity, but generally, investing in high-quality shunts guarantees they perform reliably over a decade or more. Regular inspections help catch any issues early and prolong their useful life.
Are Shunts Compatible With All Solar Charge Controllers?
Shunts aren’t compatible with all solar charge controllers. I’ve found that most modern controllers support standard shunt configurations, but it’s essential to verify your specific model’s specifications. Some controllers might require specialized shunts or have built-in monitoring options. Always verify compatibility before purchasing to ensure accurate readings and seamless integration. If in doubt, consulting the manufacturer or a professional can save you time and prevent potential issues.
How Do Environmental Conditions Impact Shunt Performance?
Environmental conditions can substantially impact shunt performance. Extreme temperatures, moisture, and dust can cause corrosion or fluctuation in readings. I always make sure my shunt is installed in a protected, dry location to prevent damage. Regular inspections help me catch any issues early, ensuring accurate monitoring. By controlling these conditions, I keep my solar system running efficiently and extend the lifespan of my shunt and other components.
Conclusion
Choosing the right solar battery monitor shunt can subtly enhance your system’s efficiency and longevity. While it might seem like a small detail, the right monitor can gently guide you toward smarter energy use without demanding too much of your attention. By paying a little mind to these options, you’ll find yourself better equipped to nurture your solar setup, ensuring it quietly serves you well for years to come.
